SPECIAL SHOT BLASTING MACHINES WITH TURBINES

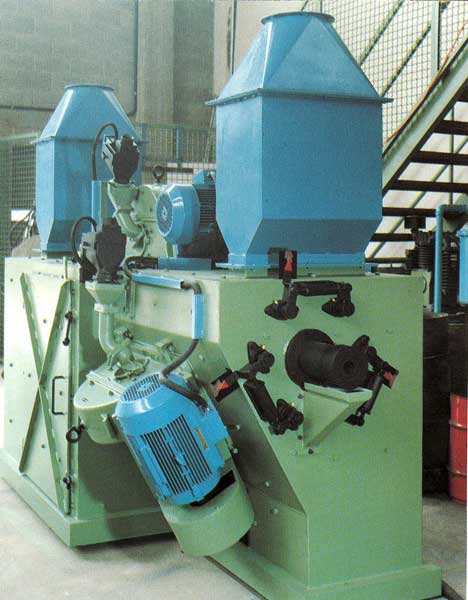

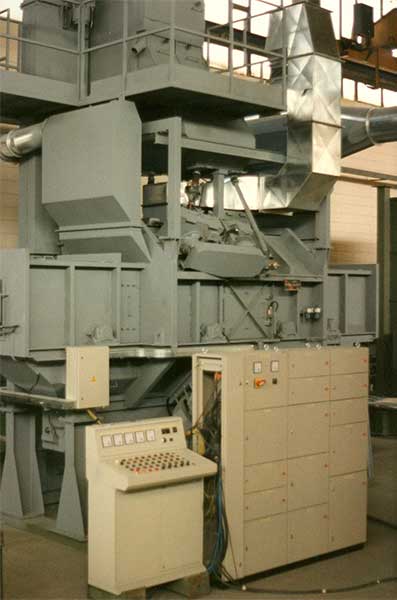

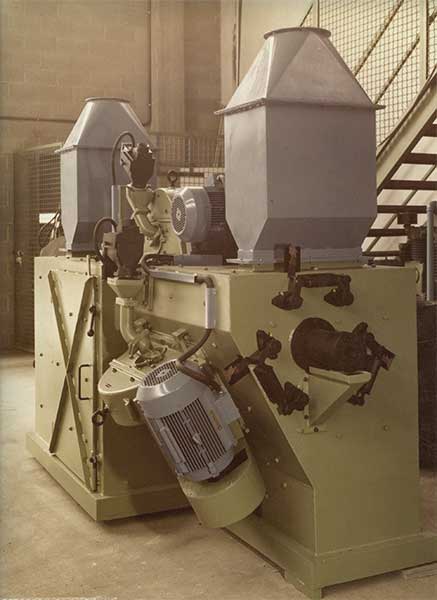

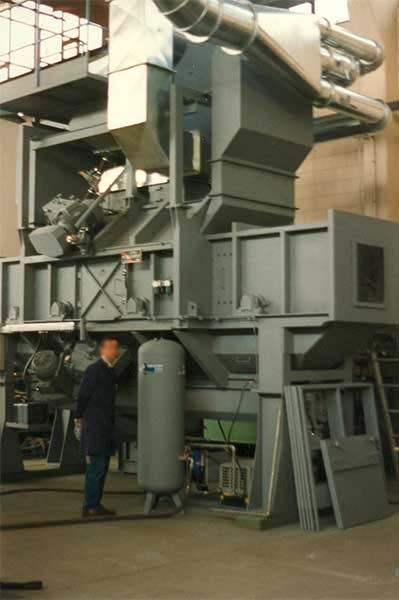

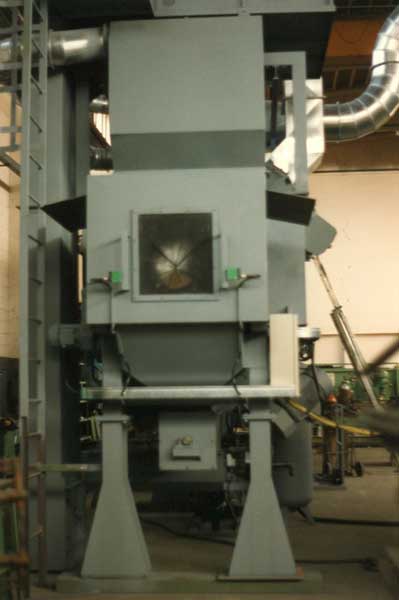

These systems are very compact and suitable for a continuous high-speed passage of the material to be processed. The turbines, with a variable speed, are positioned in a way to treat the whole surface of the workpiece during the passage. The cabin is in special execution. Application of 3 - 4 turbines for standard versions. Application of 8 turbines according to the required production. Rollers and cones with special profile for the passage of the material. Automatic cleaning and recovery of the abrasive. Inverter to adjust the feed speed of the material. PLC and touch screen cycle control.

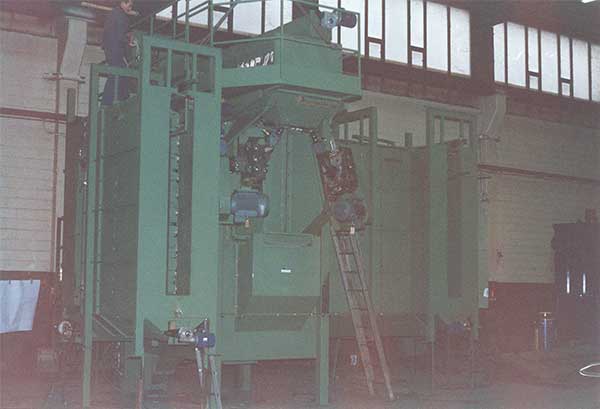

These systems have been designed exclusively to treat vertical "T" and "L" profiles for posts for fences with a continuous passage without stopping the system. The turbines are positioned in a special way for the total cleaning of the pieces. The central cabin is internally coated with easily interchangeable protections. Electro-control to feed grit to the turbines with controlled flow rate. A series of rubber curtains prevents the spillage of the abrasive.

The orientation of the systems can be:

• straight passage
• U passage
• Z passage

Suitable to be connected with galvanizing and painting plants. Shot-blasting speed from 1 to 5 meters/minute. PLC and touch screen cycle control.

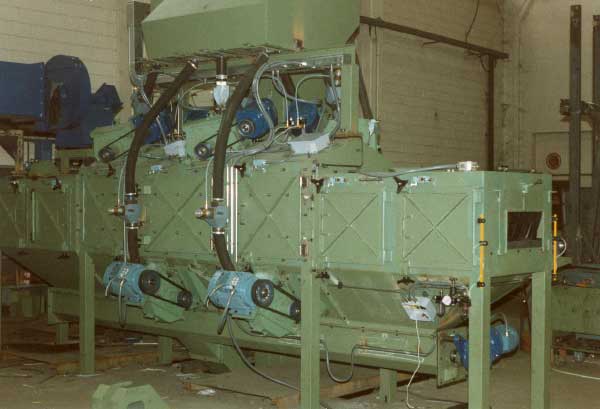

System with horizontal rollers suitable for the shot-blasting of small and large tractor track soles. The rollers are placed very close to each other so that the material can pass through during the treatment. The upper turbines are placed in a special way to treat the surface and the heads of the soles. The lower turbines are positioned in order to treat the lower part. Variable material feed. Variable speed turbines. Automatic cleaning and recovery of the abrasive. PLC and touch screen cycle control

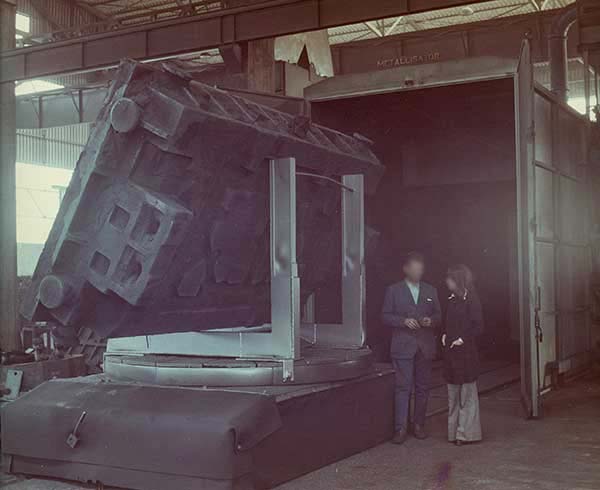

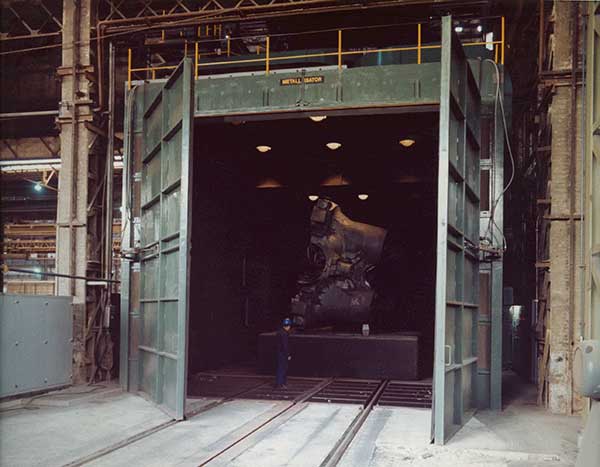

Large-sized chamber system with fixed turbines suitable for decoring sand blasting operations.

The cabin is built according to the dimensions of the pieces.

Pneumatic doors.

Double magnetic separator.

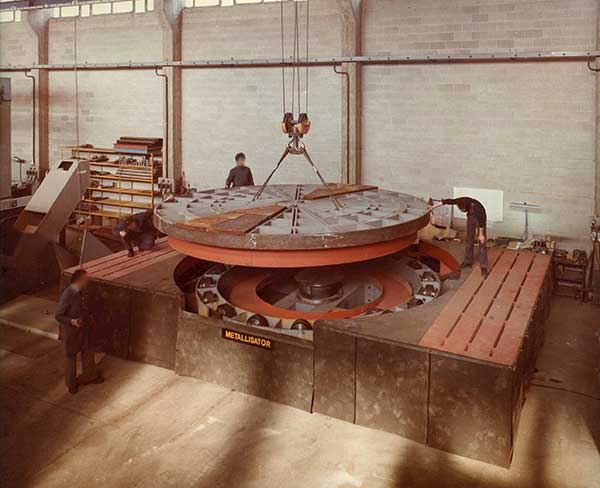

Mobile trolley capacity 40-150 tons.

Automatic cycle with PLC and touch screen.
