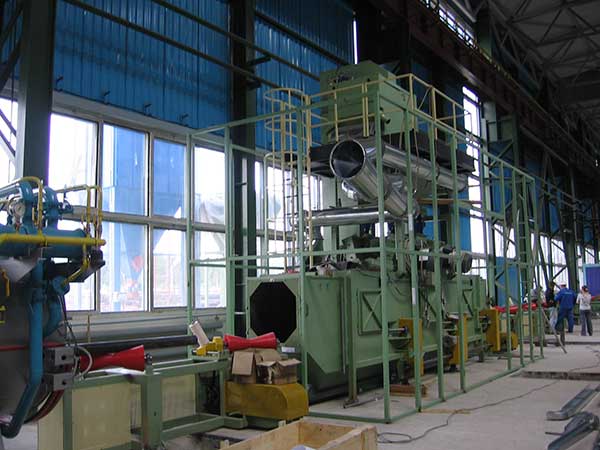

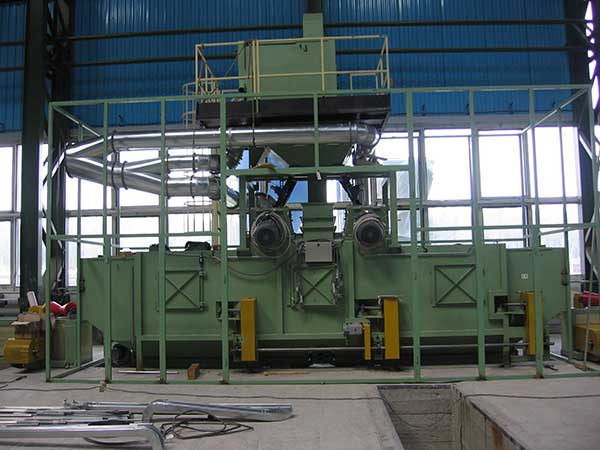

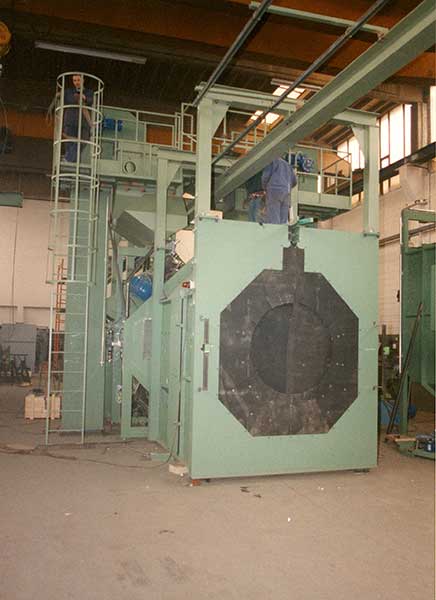

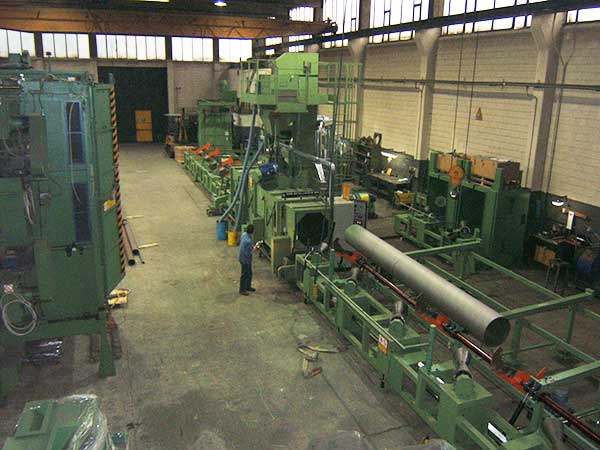

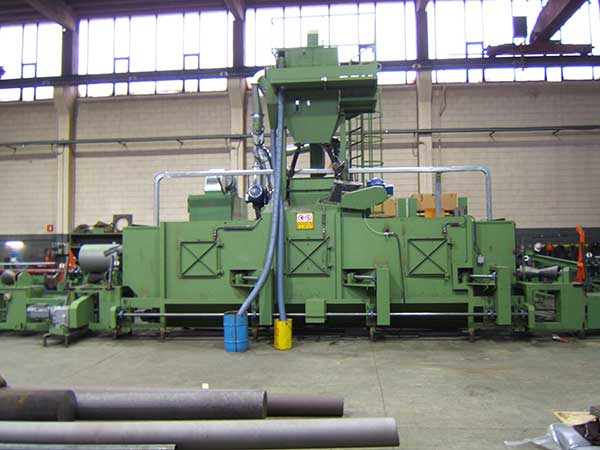

SHOT BLASTING MACHINES WITH TURBINE FOR PIPES EXTERIOR

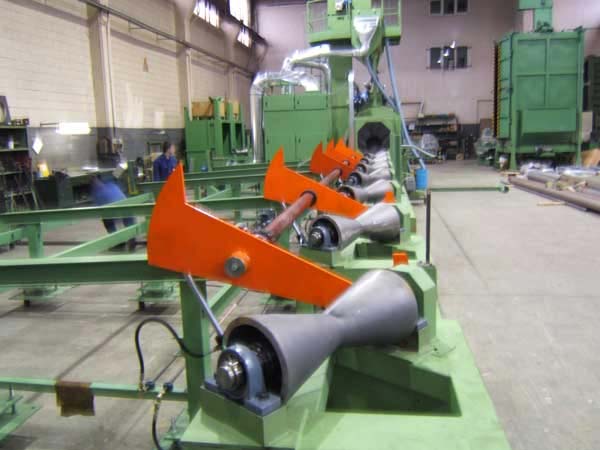

The shot-blasting machines with turbine for pipes exterior are particular systems where the roughness and appearance of the treated surface have an important value for the treatments that will be performed (even in line with the system, if requested by the customer). The position of the turbines on the blast cabin is very important. The type of turbine is chosen according to the diameter of the tubes and the production required by the customer. Automatic cleaning and abrasive recovery system. Rubber curtains on the inlet and outlet pre-cameras do not allow abrasive to come out during blasting. A specially designed roller conveyor allows the pipe to advance and rotate simultaneously on its axis so that the piece can be continuously cleaned. The INVERTER is located on the roller conveyor in order to adjust the advancement of the pipe. Designed for pipes from ø 21 to 2032 mm. (80”).

It is possible to add:

• add an external infeed roller conveyor

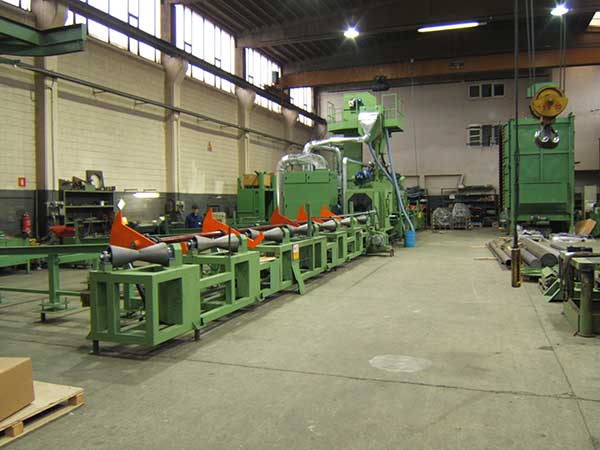

• external outfeed roller conveyor
• automatic loading bench
• automatic unloading bench
• PLC and touch screen cycle control.
