SHOT BLASTING MACHINES WITH STEEL BELT TURBINE AND WIRE MESH PASSAGE
A CONTINUOUS PASSAGE WITH NET OR SHUTTER

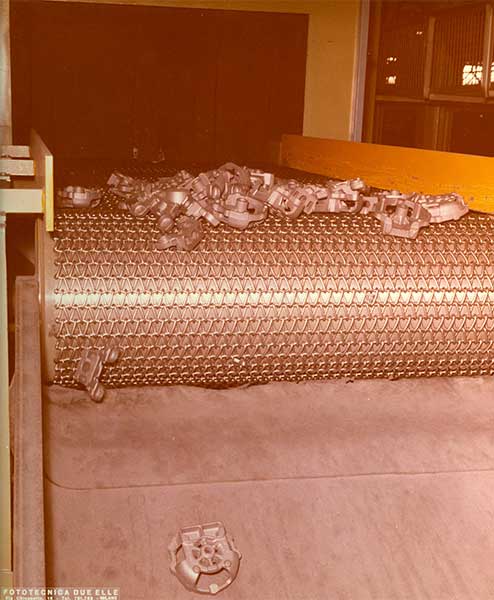

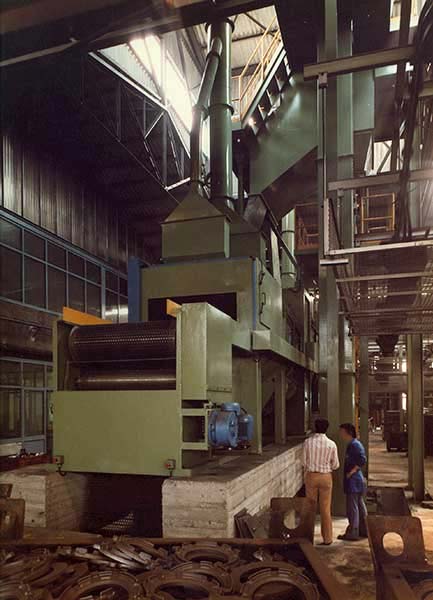

SHOT BLASTING MACHINE WITH HORIZONTAL CONTINUOUS PASSAGE WITH WIRE MESH OR STEEL ROLLER SHUTTERS
Continuous-passage shot-blasting machines with "WIRE MESH" or "STEEL ROLLER SHUTTERS" are recommended for the treatment of small and medium sized loose parts. They have a horizontal movable belt on which the pieces are placed, then they pass through the central cabin and finally they are sand-blasted by the abrasive launched by the turbines. For wire mesh blasting machines, the turbines are placed both in the upper part of the central cabin and in the hopper. For shot blasting machines with steel shutters the turbines are placed only in the upper part of the central cabin. Internal protections are made of a highly resistant material that is easily interchangeable. A series of rubber curtains avoids the spillage of the abrasive. Automatic grit cleaning system. The pieces are unloaded automatically, after being treated, on a container at the exit or on a conveyor belt. The dimensions of the passage are designed according to the pieces to be treated
DECORING VERSION
Single or double magnetic separator with the possibility of recovering foundry earth. Vibrating screen for slag separation. PLC and cycle control touch screen.
CARPET

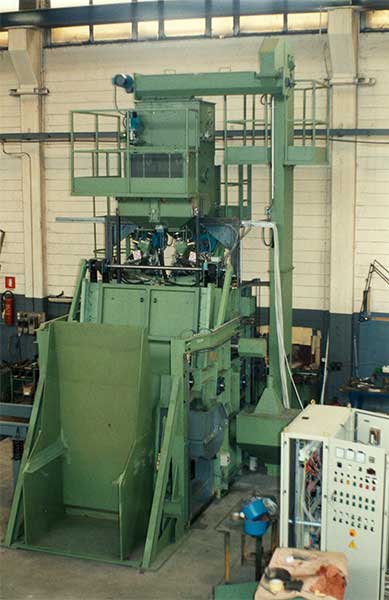

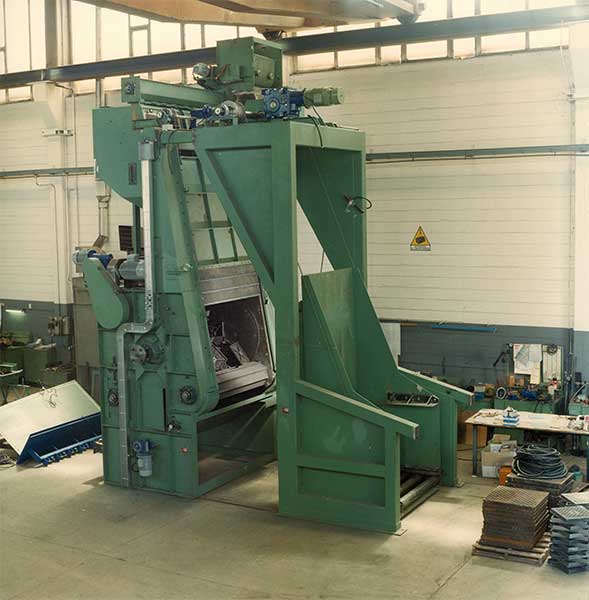

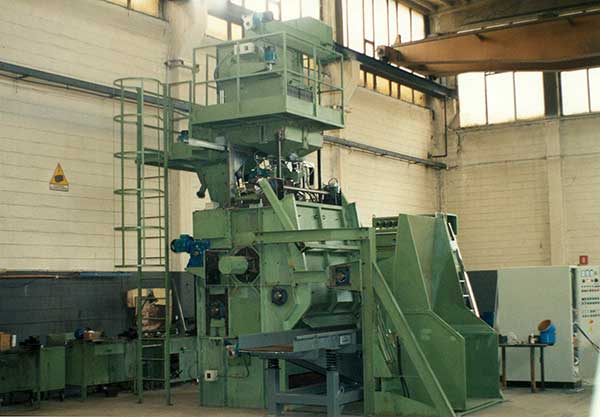

SHOTBLASTING MACHINE WITH CLOSED STEEL BELT TURBINE

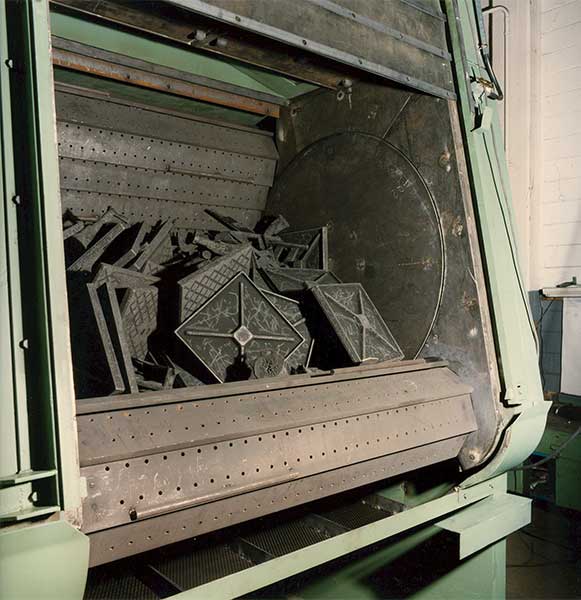

The "METAL BELT" shot-blasting machines are suitable for the treatment of small and medium sized loose pieces. They have a movable belt with thick steel shutters, on which the pieces are placed. By rolling on themselves, they expose all the surfaces to the action of the abrasive launched by the turbines on the ceiling.
The loading of the pieces is automatic by means of a bucket with hydraulic control.
The pieces are unloaded automatically, after being treated, either on a container under the door or on a vibrating transporter located outside.
Door with hydraulic control.
Automatic grit cleaning system.
Inner protections with high resistance material easily interchangeable.
Safety barriers for the operator.
Without excavation of the foundations.
Capacity of each load from 1000 to 5000 Kg.
DECORING VERSION
Single or double magnetic separator with the possibility of recovering foundry earth.
Vibrating screen for slag separation.
PLC and touch screen cycle control.
