SHOT BLASTING MACHINES WITH ROTATING TABLE TURBINE AND ROTATING DRUM

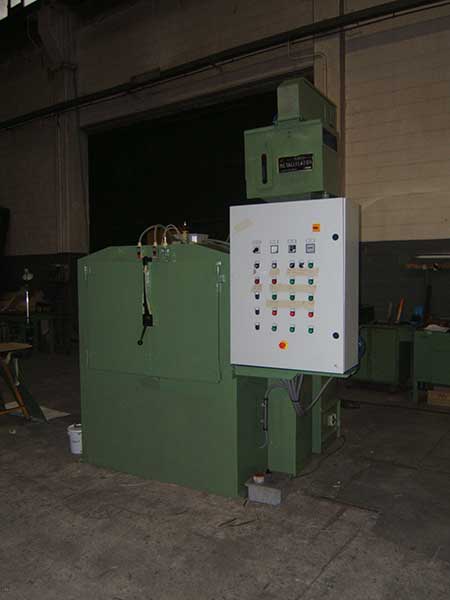

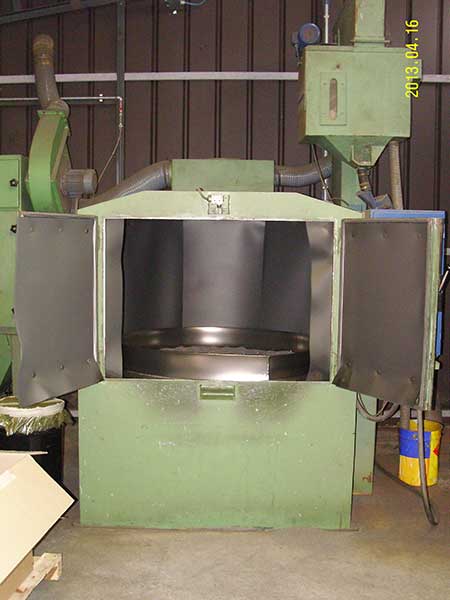

COMPACT TYPE
"COMPACT" and "RO" shot blasting machines are very simple and economical rotating tables. An access door allows the pieces to be loaded on the table which, with rotation, exposes all the surfaces of the material to the action of the abrasive launched by the turbine.
They are built in different versions and with easy access to the inside of the table. Internal rubber protections easily interchangeable.
Turbine front protections in special interchangeable high-strength alloy. Automatic cleaning and recovery of the abrasive. Without excavations of foundation.
The DECORING version includes the magnetic separator and the vibrating screen for slag separation.
PLC and touch screen cycle control.

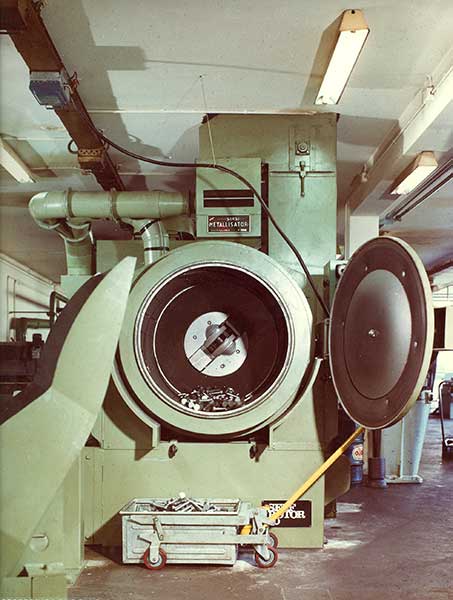

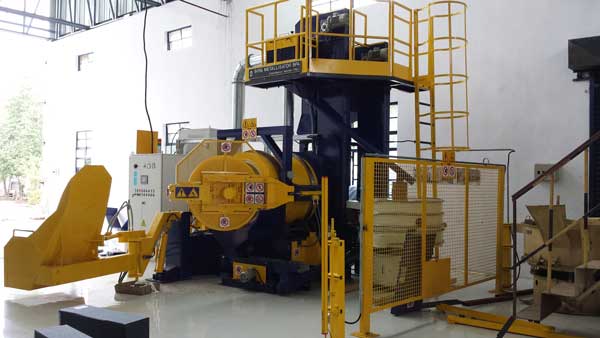

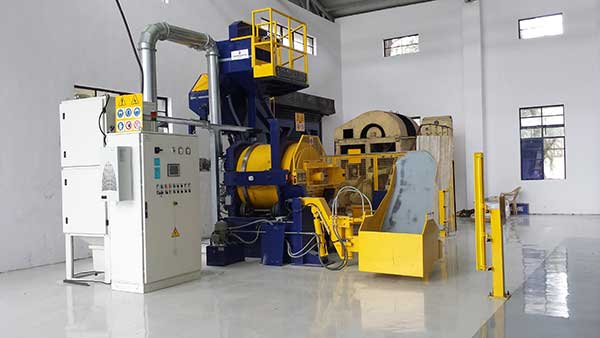

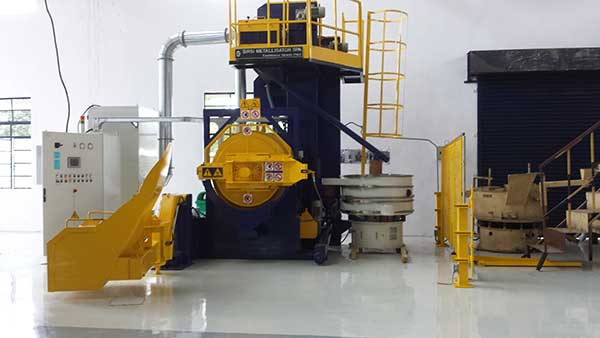

ROTOR TYPE
The "ROTOR" type shot-blasting machines are systems designed for the treatment of small and medium workpieces. The internal drum carrying workpieces, is made of a special material, which allows to hold and treat even small pieces such as pins, bushings and flanges of chains.
On the other hand, the belt versions could have problems with the loss of material. After careful studies and experience, it has been possible to realize these systems with a concept of total parameter control with regard to the material "shot peening" by means of the "Almen" grades.
To avoid loss of work pieces during the processing, special seals have been created with contact with the door and the turbine. Automatic hydraulic door or with manual push.
Double selection vibrating screen allows the use of the right type of abrasive.
Automatic and hydraulic bucket loader. Automatic workpiece unloading.
PLC and touch screen cycle control.
It is possible to add a vibrating-transporter to convey shot-blasted pieces to the collection bin.
If necessary:
- Turbine inverter
- amperometric threshold on the turbine engine
- touch screen with programmable formulas
