SD TN 2014
SD type manual valve with single-acting mechanism. From DN 10 to DN 65.

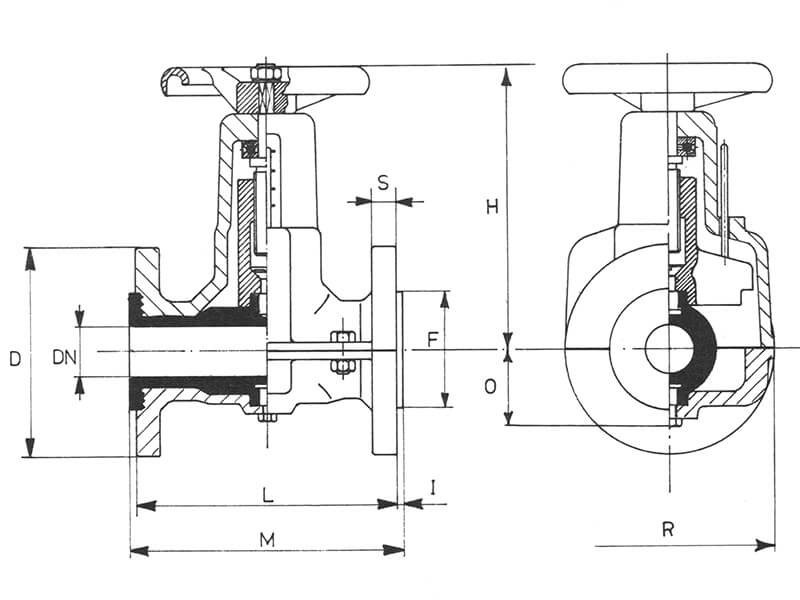

Characteristic and dimensions
Flange dimensions: to DIN 2532 - ND 10 or UNI 2223 - PN 10-16 standards. Optionally, according to different standards.
Length over flanges: to DIN 3202 FI standards. Optionally shorter valves can be supplied (type "D")
Mechanism: single-acting.
Valve body: aluminum or cast iron, with corrosion-proof
coating. after sandblasting.
Flexible sleeve: natural rubber or synthetic elastomers
(Neoprene, Butyl, Hycar, Hypalon, Silicone, Viton).
