SC TN 2015
SC type manual valve with double-acting mechanism. From DN 65 to DN 250.

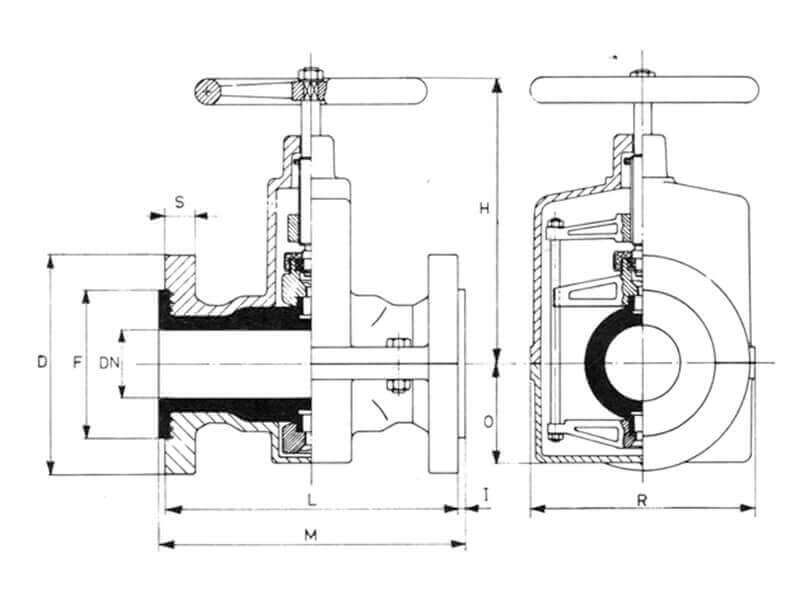

Characteristic and dimensions
Flange dimensions: to DIN 2532 - ND 10 or UNI 2223 - PN 10-16 standards. Optionally, according different standards.
Length over flanges: to DIN 3202 FI standards. Optionally shorter valves can be supplied (type "C")
Mechanism: double-acting.
Valve body: aluminum or cast iron, with corrosion-proof coating, after sandblasting.
Flexible sleeve: natural rubber or synthetic elastomers (Neoprene, Butyl. Hycar, Hypalon, Silicone, Viton).
